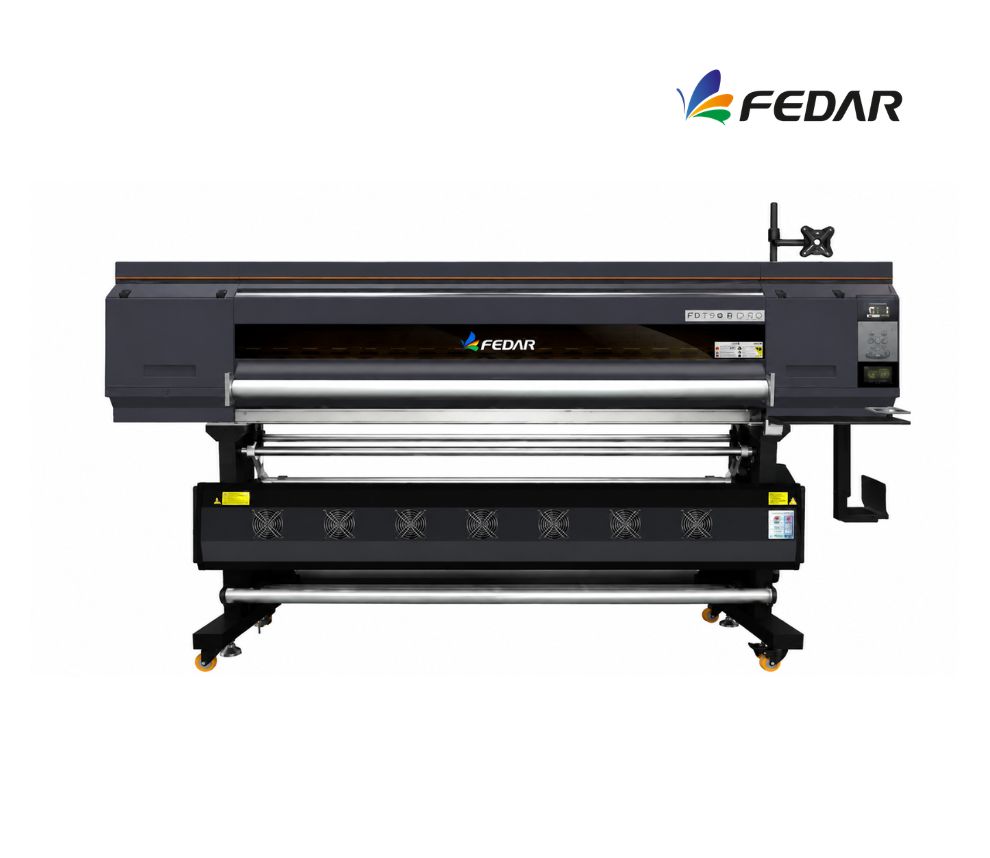

FEDAR FD5194E

Features

• HIGH-PRECISION PRINT HEAD 4 Epson I3200-A1 print heads with 3200 DPI resolution and VSDT technology to improve definition, color quality, and print stability. 2-pass speed can reach up to 170 m²/h.
• THK SILENT LINEAR GUIDE Equipped with imported Japanese THK linear guide, allowing smoother carriage movement, reducing friction and noise during high-speed printing.
• LEADSHINE BRUSHLESS MOTOR High-precision Leadshine brushless motor, with better resolution, smaller length error margin, and more stable operation.
• ANTI-COLLISION CARRIAGE SYSTEM Allows the head height to be adjusted according to the material used. It also features an anti-collision system on both sides of the carriage to protect the head during operation.
• MAINTENANCE STATION WITH LIFTABLE PRINT HEAD Advanced head cleaning and moisturizing unit, easy to operate and maintain. Allows selecting automatic or manual mode.
• INK TANK AND SUB-TANK SYSTEM Continuous supply system using tank and sub-tank, ensuring constant ink output and helping maintain print quality. Includes an alarm to remind you to refill ink in time.
• FLUORINATED RUBBER PINCH ROLLER Imported fluororubber roller that helps prevent static electricity, reduce ink misting, and avoid wrinkles during printing.
• INTELLIGENT TAKE-UP UNIT WITH INFLATABLE ROLLER Supports material loads of up to 1000 m, reducing roll-change frequency. Features an oscillating shaft and sensor bar to maintain constant tension during rewinding.
• INTELLIGENT DRYER Includes an intelligent air dryer to support the printing process and improve drying performance.
• PRINT WIDTH 1900 mm print area, ideal for large-format sublimation production.
• COMPATIBLE MEDIA Works with transfer paper from 40 g to 100 g.
• RIP SOFTWARE Compatible with Maintop, Photoprint, Onyx, and neoStampa.
• COMPATIBILITY Compatible with Win 7, Win 8, and Win 10, 64-bit.

Maintenance

• DAILY POWER-ON, EVEN IF YOU DON'T PRINT Helps keep ink circulating and prevents bubbles from forming or ink from drying out in the heads.
• AUTOMATIC CLEANING ACTIVATED Let the equipment run its maintenance cycle. Not interrupting it helps prolong the head's service life.
• KEEP THE CAPPING STATION, DAMPERS, AND WIPER CLEAN These consumables can accumulate ink and lint. Weekly cleaning helps prevent stains, ink cutoffs, or clogs.
• CONTROL AMBIENT HUMIDITY Recommended range: 45%–60%. Low humidity can dry out the ink; excessive humidity can affect the paper and print quality.
• CHECK FEED ROLLERS AND TAKE-UP SYSTEM Keeping them clean helps prevent marks on the paper, wrinkles, or tension issues during operation.
• USE THE EQUIPMENT FREQUENTLY Sublimation plotters need constant ink circulation. It's recommended to use the equipment at least 3–4 times per week.
