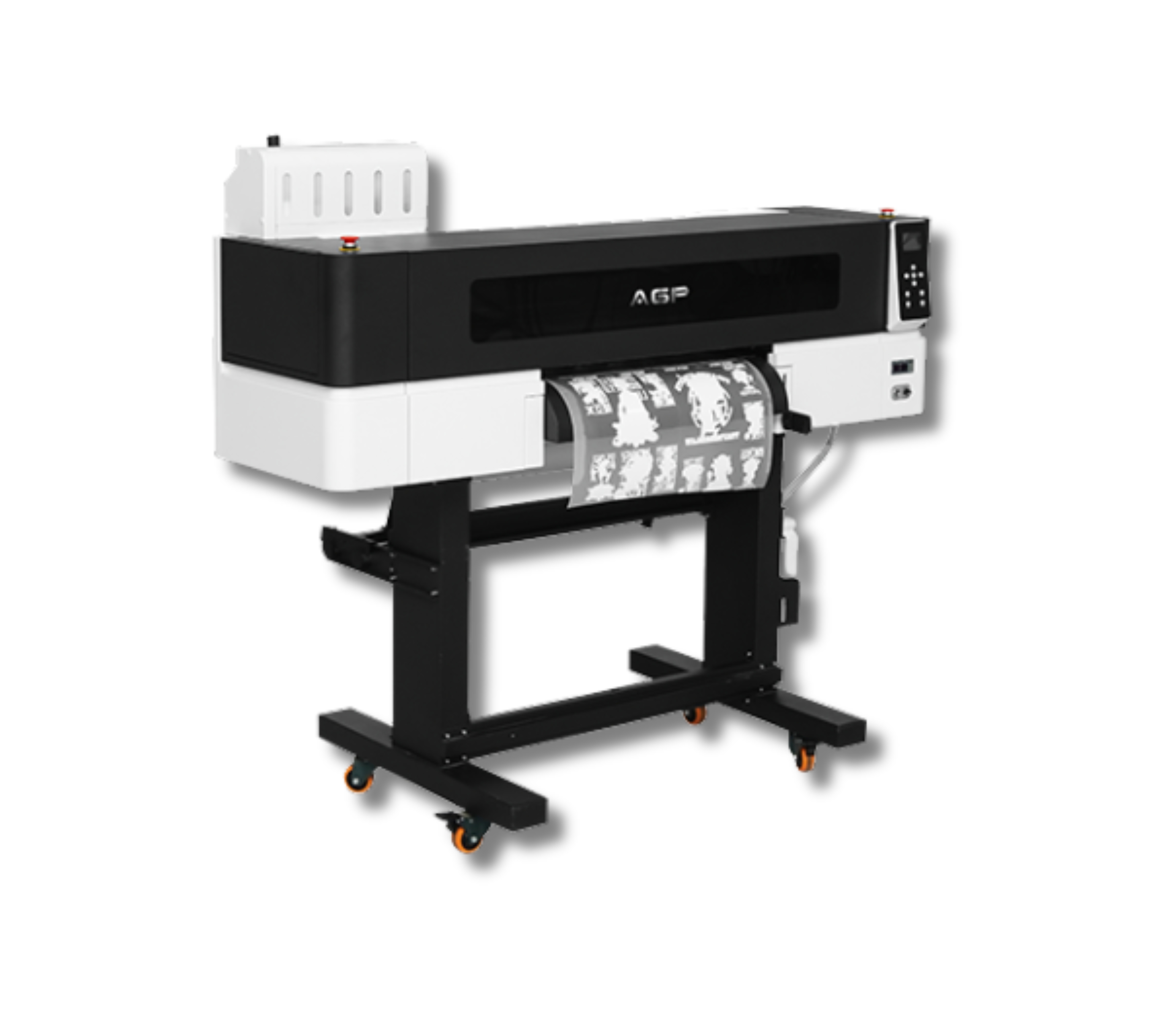

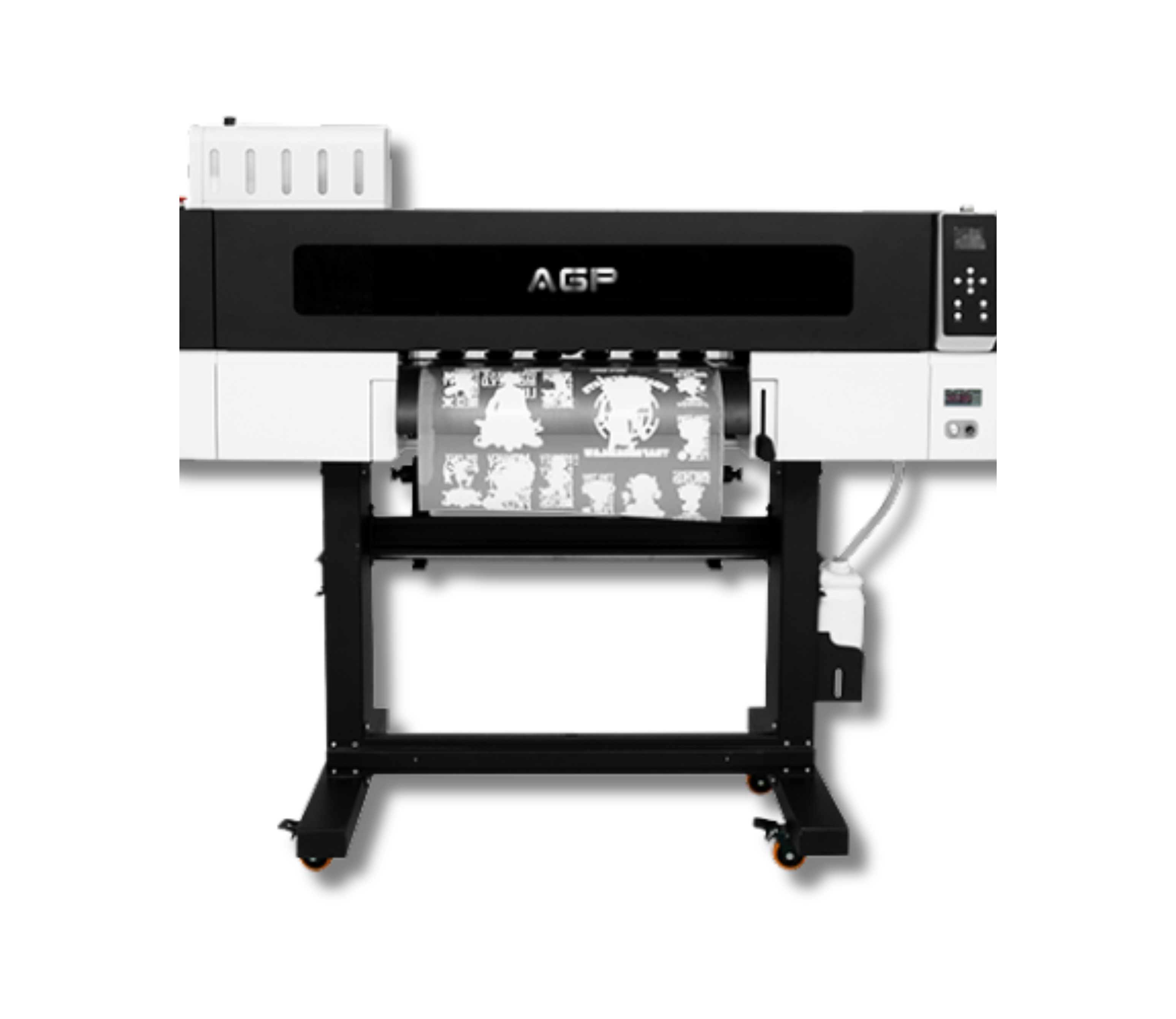

AGP 2 Printheads

Related Products

•

  AGP UV-6090

  Key features

  • IN-HOUSE DEVELOPMENT. LONG SERVICE LIFE. HIGH PRECISION. LOW COST
  • OPTIONAL CYLINDRICAL PRINTING
    Allows printing on cylindrical objects from 20 to 140 mm in diameter, with a maximum width of 590 mm.
  • UV LED CURING
    Air-cooled UV LED system.
  • CCD VISUAL POSITIONING
    Optional CCD visual positioning system for the equipment.
  • AUTOMATIC HEIGHT MEASUREMENT
    Infrared automatic height measurement system.

  Technical specifications

  • Model: UV-6090
  • Type: UV Flatbed Printer
  • Printheads: 3 × Epson I3200-U1
  • Maximum printing area: 600 × 900 mm
  • Maximum material thickness: 160 mm
  • Inks: CMYK + W + V
  • Curing: Air-cooled UV LED
  • RIP: RIIN / Flexiprint / Maintop / NeoStampa
  • Voltage: 220 V – 50/60 Hz
  • Power: 400 W
  • Operating temperature: 18 °C to 28 °C
  • Operating humidity: 40% to 60%
  • Machine dimensions: 1700 × 1545 × 1315 mm
  • Machine weight: 288 kg
  • Packaging dimensions: 1920 × 1660 × 1020 mm
  • Shipping weight: 391 kg

  Recommended PC configuration

  • Processor: Intel Core i5-13500H or higher
  • Memory: 16 GB
  • Graphics card: dedicated graphics card
  • Storage: 1 TB SSD
  • Operating system: 64-bit Windows 10 or Windows 11
  • Network: Gigabit RJ45 network card with Intel chipset + “Jumbo Packet-9014” mode for CCD camera connection.

  Max width: 600mm

  Speed: 16 m2/h

  Media: Glass, boards, different types of signage, crystal, PVC, acrylic, leather, plastic, among others.

  See more

  Request a quote
•

  ORIC 60 CM 4 Printheads

  4 cabezales Epson I3200

  Maintenance

  • Dust-Free Environment Keep the work environment dust-free to prevent it from affecting printing.
  • Temperature and Humidity The machine should operate at a temperature of 25–30°C and a humidity of 40–60%.
  • Platform Cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
  • Cleaning the Underside of the Printhead Move the carriage to the cleaning position, clean the underside of the printhead with a non-woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and surrounding areas.

  Max width: 600mm

  Speed: 20 m2/h

  Media: Pet Film 620mm

  See more

  Request a quote
•

  ORIC A3

  2 Epson I1600 printheads

  Maintenance

  • Dust-free environment Keep the working environment dust-free to prevent it from affecting printing.
  • Temperature and humidity The machine should operate at a temperature of 25–30°C and with a humidity of 40–60%.
  • Platform cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
  • Cleaning the bottom of the printhead Move the carriage to the cleaning position, wipe the bottom of the printhead with a non woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and nearby areas.

  Max width: 300mm

  Speed: 7.1 m2/h

  Media: Pet Film 320mm

  See more

  Request a quote
•

  FEDAR FD5194E

  4 cabezales Epson I3200

  Features

  • HIGH-PRECISION PRINT HEAD 4 Epson I3200-A1 print heads with 3200 DPI resolution and VSDT technology to improve definition, color quality, and print stability. 2-pass speed can reach up to 170 m²/h.
  • THK SILENT LINEAR GUIDE Equipped with imported Japanese THK linear guide, allowing smoother carriage movement, reducing friction and noise during high-speed printing.
  • LEADSHINE BRUSHLESS MOTOR High-precision Leadshine brushless motor, with better resolution, smaller length error margin, and more stable operation.
  • ANTI-COLLISION CARRIAGE SYSTEM Allows the head height to be adjusted according to the material used. It also features an anti-collision system on both sides of the carriage to protect the head during operation.
  • MAINTENANCE STATION WITH LIFTABLE PRINT HEAD Advanced head cleaning and moisturizing unit, easy to operate and maintain. Allows selecting automatic or manual mode.
  • INK TANK AND SUB-TANK SYSTEM Continuous supply system using tank and sub-tank, ensuring constant ink output and helping maintain print quality. Includes an alarm to remind you to refill ink in time.
  • FLUORINATED RUBBER PINCH ROLLER Imported fluororubber roller that helps prevent static electricity, reduce ink misting, and avoid wrinkles during printing.
  • INTELLIGENT TAKE-UP UNIT WITH INFLATABLE ROLLER Supports material loads of up to 1000 m, reducing roll-change frequency. Features an oscillating shaft and sensor bar to maintain constant tension during rewinding.
  • INTELLIGENT DRYER Includes an intelligent air dryer to support the printing process and improve drying performance.
  • PRINT WIDTH 1900 mm print area, ideal for large-format sublimation production.
  • COMPATIBLE MEDIA Works with transfer paper from 40 g to 100 g.
  • RIP SOFTWARE Compatible with Maintop, Photoprint, Onyx, and neoStampa.
  • COMPATIBILITY Compatible with Win 7, Win 8, and Win 10, 64-bit.

  Maintenance

  • DAILY POWER-ON, EVEN IF YOU DON'T PRINT Helps keep ink circulating and prevents bubbles from forming or ink from drying out in the heads.
  • AUTOMATIC CLEANING ACTIVATED Let the equipment run its maintenance cycle. Not interrupting it helps prolong the head's service life.
  • KEEP THE CAPPING STATION, DAMPERS, AND WIPER CLEAN These consumables can accumulate ink and lint. Weekly cleaning helps prevent stains, ink cutoffs, or clogs.
  • CONTROL AMBIENT HUMIDITY Recommended range: 45%–60%. Low humidity can dry out the ink; excessive humidity can affect the paper and print quality.
  • CHECK FEED ROLLERS AND TAKE-UP SYSTEM Keeping them clean helps prevent marks on the paper, wrinkles, or tension issues during operation.
  • USE THE EQUIPMENT FREQUENTLY Sublimation plotters need constant ink circulation. It's recommended to use the equipment at least 3–4 times per week.

  Max width: 1900mm

  Speed: 170 m²/h

  Media: Sublimation paper / transfer paper
