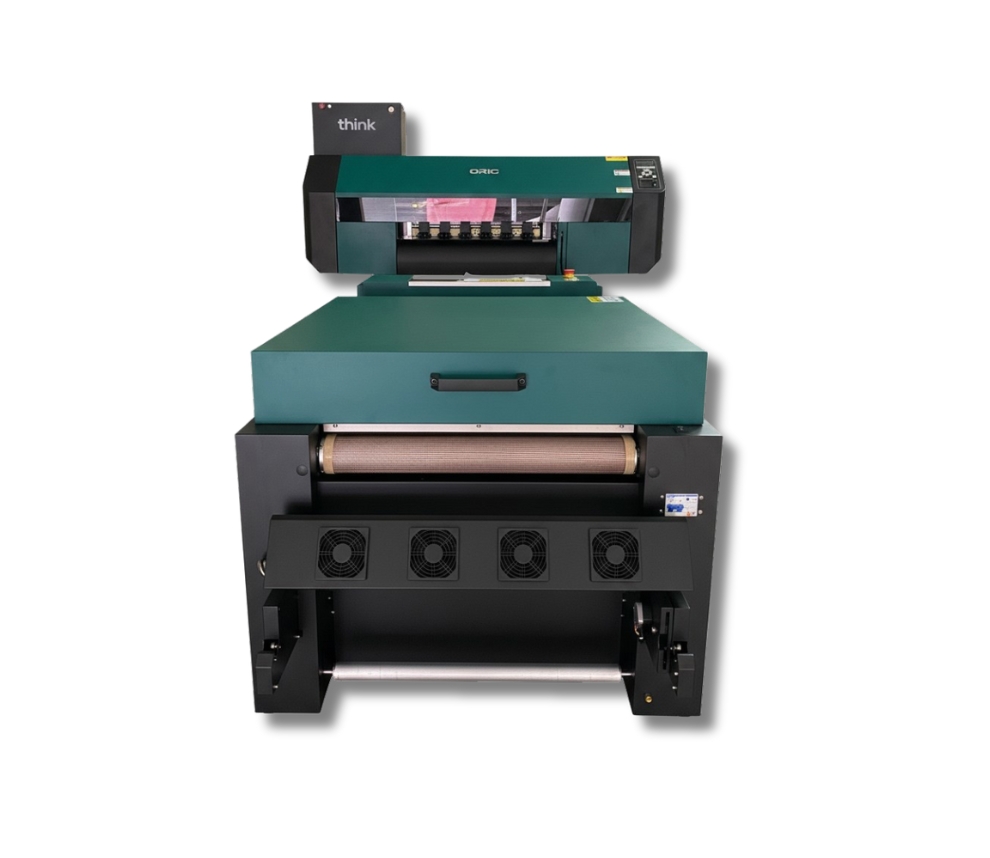

ORIC 60 CM 4 Printheads

Related Products

•

  ORIC A3

  2 cabezales Epson I1600

  Maintenance

  • Dust-free environment Keep the working environment dust-free to prevent it from affecting printing.
  • Temperature and humidity The machine should operate at a temperature of 25–30°C and with a humidity of 40–60%.
  • Platform cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
  • Cleaning the bottom of the printhead Move the carriage to the cleaning position, wipe the bottom of the printhead with a non woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and nearby areas.

  Max width: 300mm

  Speed: 7.1 m2/h

  Media: Pet Film 320mm

  See more

  Request a quote
•

  Plotter FD6198E

  8 cabezales Epson I3200

  • HIGH-RESOLUTION PRINTHEAD 8 Epson I3200-A1 printheads; 1-pass speed can reach up to 320 m²/h.
  • SMART LOW-INK ALARM Reduces the need to frequently check remaining ink levels and reminds you to add ink in time to ensure continuous printing workflow.
  • STABLE MEDIA FEEDING AND TAKE-UP SYSTEM Convenient and fast; media is quickly loaded, equipped with automatic paper measurement and anti-scratch function. If the consumables deform, printing stops automatically to prevent head strikes.
  • ADVANCED CAPPING STATION Equipped with an advanced intelligent printhead cleaning and moisturizing system, providing safe and convenient maintenance and cleaning functions with simpler operation.
  • SPECIALLY DESIGNED CARRIAGE The printhead position can be adjusted according to different printing media, with anti-collision devices on both sides.
  • SMART HOT-AIR DRYER The intelligent drying system is synchronized with printing. Temperature can be adjusted in real-time during the printing process.
  • FLUORORUBBER PRESSURE ROLLER The U.S. fluororubber pressure roller prevents static electricity. The exclusive lifting device compensates for partial paper bulging during the printing process.
  • HIGH-PRECISION PLATFORM The printing platform is controlled within ±7.5 wires and features hard oxidation treatment on the surface to prevent long-term deformation.
  • THK SILENT GUIDE RAIL Uses Japanese THK silent linear guide rail for smoother movement and longer service life.
  • LEADSHINE SERVO MOTOR The bidirectional brushless Leadshine motor offers higher precision, lower length deviation, and more stable performance.
  • LARGE-CAPACITY INK TANKS Four 3L large-capacity ink tanks supply ink independently and continuously.
  • IGUS INK CHAIN FROM GERMANY High-quality IGUS ink chain imported from Germany, ensuring excellent printing performance.
  • COMPATIBILITY Win 7 / Win 8 / Win 10.

  Maintenance


  • Daily power-on (even if you don't print)     Helps the inks circulate and prevents bubbles from forming or drying out in the heads.

  • Automatic cleaning activated     Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.

  • Keep the capping station, dampers, and wiper clean     These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.

  • Control the ambient humidity     Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.

  • Check feed rollers and trays     If they are dirty, they mark the paper or generate banding.

  • Use the equipment at least 3–4 times per week     Sublimation plotters need constant ink movement.

  Max width: 1900mm

  Speed: 320 m²/h

  Media: Thermal transfer paper

  See more

  Request a quote
•

  DTF UV (60cm)

  3 cabezales Epson I3200

  Maintenance

  • Daily Power On and Circulation Even if you're not printing, turn it on every day to circulate the UV ink and prevent it from hardening inside the printhead.
  • Cleaning the Wiper, Cap Station, and Surrounding Area Do this daily. UV ink is thicker and crusts up quickly, clogging the nozzles.
  • Avoid Direct Light on the Ink UV inks are cured by light. Keep the cartridges and the plotter area away from sunlight or external UV lights.
  • Nozzle Check 1–2 Times a Day UV ink tends to dry faster. You detect any cuts before they affect a job.
  • Manual printhead cleaning (only when necessary) Do this with UV cleaning solution and a lint-free cloth. Never use alcohol.
  • Proper ventilation of the work area UV inks emit fumes. A well-ventilated environment improves the life of the equipment and the health of the operator.
  • Cooling system maintenance Check the water in the chiller or printhead cooling system. If the cooling fails, the printhead can be damaged in minutes.

  Max width: 620mm

  Speed: 10 m2/h

  Media: Film A (with adhesive) + B / Film A (without adhesive) + B

  See more

  Request a quote
•

  DTF 6 Printhead

  6 cabezales Epson I3200

  • High Speed 6-printhead design; maximum achievable speed is 32 m²/h.
  • White-Ink Circulation System Prevents white-ink clogging and ensures more stable printing.
  • Robust Body Japanese steel guide rail; integrated high-strength stand.
  • Built-in Air Purifier Powder agitator with fume-purification function, electronic cleaner, and oil-fume separation.
  • Intelligent Printhead Plate Heating The head heats automatically according to temperature to achieve uniform printing.
  • Smart Touchscreen Easier operation thanks to the touch control panel.

  Compatibility: Standard PhotoPrint and others.

  Maintenance

  • Dust-Free Environment Keep the work environment dust-free to prevent it from affecting printing.
  • Temperature and Humidity The machine should operate at a temperature of **25-30°C** and with a humidity of **40-60%**.
  • Platform Cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
  • Cleaning the Underside of the Printhead Move the carriage to the cleaning position, clean the underside of the printhead with a **non-woven cloth dampened with cleaning fluid or distilled water**, removing dirt from the printhead and surrounding areas.

  Max width: 600mm

  Speed: 36 m2/h

  Media: Pet film 600

  See more

  Request a quote
