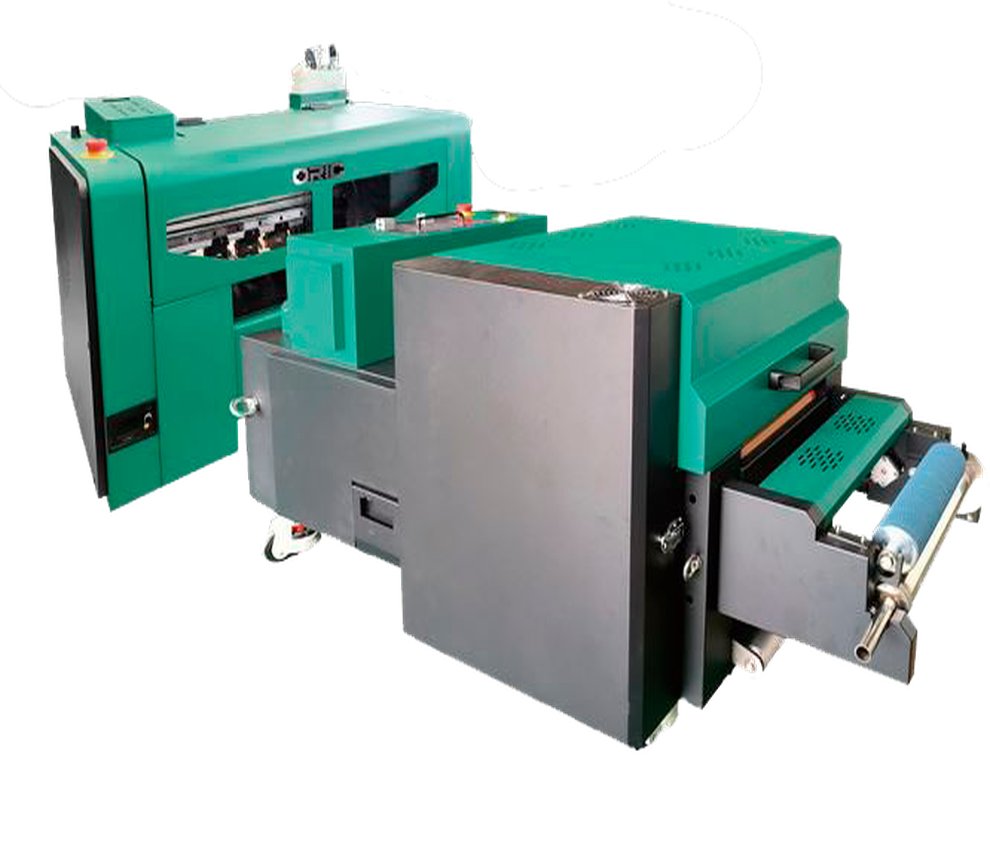

ORIC A3

Related Products

•

  ORIC 60 CM 4 Printheads

  4 cabezales Epson I3200

  Maintenance

  • Dust-Free Environment Keep the work environment dust-free to prevent it from affecting printing.
  • Temperature and Humidity The machine should operate at a temperature of 25–30°C and a humidity of 40–60%.
  • Platform Cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
  • Cleaning the Underside of the Printhead Move the carriage to the cleaning position, clean the underside of the printhead with a non-woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and surrounding areas.

  Max width: 600mm

  Speed: 20 m2/h

  Media: Pet Film 620mm

  See more

  Request a quote
•

  FEDAR FD5194E

  4 cabezales Epson I3200

  Features

  • HIGH-PRECISION PRINT HEAD 4 Epson I3200-A1 print heads with 3200 DPI resolution and VSDT technology to improve definition, color quality, and print stability. 2-pass speed can reach up to 170 m²/h.
  • THK SILENT LINEAR GUIDE Equipped with imported Japanese THK linear guide, allowing smoother carriage movement, reducing friction and noise during high-speed printing.
  • LEADSHINE BRUSHLESS MOTOR High-precision Leadshine brushless motor, with better resolution, smaller length error margin, and more stable operation.
  • ANTI-COLLISION CARRIAGE SYSTEM Allows the head height to be adjusted according to the material used. It also features an anti-collision system on both sides of the carriage to protect the head during operation.
  • MAINTENANCE STATION WITH LIFTABLE PRINT HEAD Advanced head cleaning and moisturizing unit, easy to operate and maintain. Allows selecting automatic or manual mode.
  • INK TANK AND SUB-TANK SYSTEM Continuous supply system using tank and sub-tank, ensuring constant ink output and helping maintain print quality. Includes an alarm to remind you to refill ink in time.
  • FLUORINATED RUBBER PINCH ROLLER Imported fluororubber roller that helps prevent static electricity, reduce ink misting, and avoid wrinkles during printing.
  • INTELLIGENT TAKE-UP UNIT WITH INFLATABLE ROLLER Supports material loads of up to 1000 m, reducing roll-change frequency. Features an oscillating shaft and sensor bar to maintain constant tension during rewinding.
  • INTELLIGENT DRYER Includes an intelligent air dryer to support the printing process and improve drying performance.
  • PRINT WIDTH 1900 mm print area, ideal for large-format sublimation production.
  • COMPATIBLE MEDIA Works with transfer paper from 40 g to 100 g.
  • RIP SOFTWARE Compatible with Maintop, Photoprint, Onyx, and neoStampa.
  • COMPATIBILITY Compatible with Win 7, Win 8, and Win 10, 64-bit.

  Maintenance

  • DAILY POWER-ON, EVEN IF YOU DON'T PRINT Helps keep ink circulating and prevents bubbles from forming or ink from drying out in the heads.
  • AUTOMATIC CLEANING ACTIVATED Let the equipment run its maintenance cycle. Not interrupting it helps prolong the head's service life.
  • KEEP THE CAPPING STATION, DAMPERS, AND WIPER CLEAN These consumables can accumulate ink and lint. Weekly cleaning helps prevent stains, ink cutoffs, or clogs.
  • CONTROL AMBIENT HUMIDITY Recommended range: 45%–60%. Low humidity can dry out the ink; excessive humidity can affect the paper and print quality.
  • CHECK FEED ROLLERS AND TAKE-UP SYSTEM Keeping them clean helps prevent marks on the paper, wrinkles, or tension issues during operation.
  • USE THE EQUIPMENT FREQUENTLY Sublimation plotters need constant ink circulation. It's recommended to use the equipment at least 3–4 times per week.

  Max width: 1900mm

  Speed: 170 m²/h

  Media: Sublimation paper / transfer paper

  See more

  Request a quote
•

  ORIC 60 CM 2 Cabezales

  2 Epson I3200 printheads

  • Maintenance Dust-Free Environment Keep the work environment dust-free to prevent it from affecting printing.
  • Temperature and Humidity The machine should operate at a temperature of 25–30°C and a humidity of 40–60%.
  • Platform Cleaning Keep the entire printer tidy and clean, removing dust from friction areas.
  • Cleaning the Underside of the Printhead Move the carriage to the cleaning position, clean the underside of the printhead with a non-woven cloth dampened with cleaning fluid or distilled water, removing dirt from the printhead and surrounding areas.

  Max width: 600mm

  Speed: 10 m2/h

  Media: Pet Film 620mm

  See more

  Request a quote
•

  Plotter EPSON F570

  1 PrecisionCore® Micro TFP® printhead

  • INK TYPE
    Epson UltraChrome DS sublimation ink (4 colors).

  • MAX RESOLUTION
    2400 dpi x 1200 dpi.

  • DIMENSIONS (W × D × H)
    970 mm × 577 mm × 245 mm.

  • DISPLAY
    4.3-inch touchscreen LCD.

  • CONNECTIVITY
    High-speed USB 3.0, Wireless LAN (802.11 b/g/n), and Wired Ethernet (1000 Base-T / 100 Base-TX / 10 Base-T).

  Maintenance



  • Daily power-on (even if you don't print)
    Helps the inks circulate and prevents bubbles from forming or drying out in the heads.



  • Automatic cleaning activated
    Let the equipment do its maintenance cycle. Do not interrupt it: it prolongs the life of the head.



  • Keep the capping station, dampers, and wiper clean
    These consumables accumulate ink and lint. A weekly cleaning prevents stains and clogs.



  • Control the ambient humidity
    Ideal: 45%–60%. Low humidity dries the ink; high humidity generates droplets on the paper.



  • Check feed rollers and trays
    If they are dirty, they mark the paper or generate banding.



  • Use the equipment at least 3–4 times per week
    Sublimation plotters need constant ink movement.

  Max width: 620 mm (24'')

  Speed: 62 seconds (for A1/D size)

  Media: Sublimation transfer paper for textiles and rigid materials

  See more

  Request a quote
